1958-1965 Chevrolet Parts

Part numbers, descriptions and photos for various 1958-1965 full size Chevrolet parts.

There are thousands of individual parts used to make up the 1958-1965 Chevrolet cars so this list will continually grow. If you can help fill in some of the blank areas with either a part number, photo or both, just send an e-mail.

Part numbers in blue (clickable) contain a photo of that part. Part numbers in black do not have a photo at this time. Entries marked "Pic" have a photo but do not have a part number at this time.

*Tip-If you need to check a part number of an unknown item, use the "find on this page" feature of your browser to search out list.


Scroll down or use this quick jump menu:










Bumper

Part 1958 1959 1960 1961 1962 1963 1964 1965
Bumper-front (LH) 3740985 3750849 3767985 3772943 3781895 3817609 3830703 3850205
Bumper-front (Center) 37409871   3767984 3772949 3781894 3817608 3830702 3852971
Bumper-front (RH) 3740986 3750850 3767986 3772944 3781896 3817610 3830704 3850206
Bumper-rear (LH) 3740367 3750845 3760985 3772945 3781897 3817611 3830705 3850207
Bumper-rear (Center) 37426752 3755322 37609873 37729474 3781899 3817615   38502095
Bumper-rear (RH) 3740368 3750846 3760986 3772946 3781898 3817612 3830706 3850208

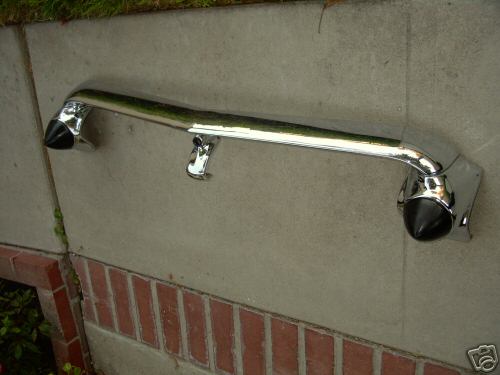

Bumper Guards (front)     988235 Pic   Pic 985829 986185
Bumper Guards (rear)     988236     985441   986184
Bumper to frame brackets front (LH) 3741601         3819837
Bumper to frame brackets front (RH) 3741602         3819838
Bumper to frame brackets rear (LH) 3741683
Bumper to frame brackets rear (RH) 3741684
Bumper to frame brace front (LH) 3746671
Bumper to frame brace front (RH) 3746672
Bumper to frame brace rear (LH) 3748131
Bumper to frame brace rear (RH) 3748132

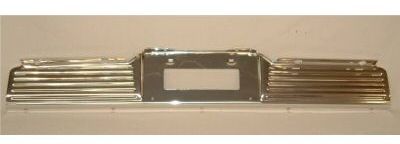

Bumper License Valance (front) 3745676   3768337     Pic 3833230 3852970
Bumper License Valance (rear) 3741661         Pic
License plate bracket (front) 3743984


Chassis-Driveline Area

Part 1958 1959 1960 1961 1962 1963 1964 1965
Center link (power steering)           3826483
Gas cap (exc. wagon)       3787292 3814436 3814436
Gas cap (station wagon)       3787291     985895
Frame 3755821 3780173 3780173 3786623 3857157 3857157 3857157 388164914
Frame (convertible) 3755831 3780165 3780165 3777099 3857165 3857165 3857165 3864767
Frame (Taxi) X X X X X X X 3861853
Fuel tank (passenger) 3745848 3775654 3775654 3777685 3777685 3777685 3777685 3867744
Fuel tank (station wagon) 3756560 376778419 376778419 3786776 3786776 3786776 3842967 3857537
Fuel tank (Delivery) 3756560 376426520 376426520 X X X X X
Power steering control valve           5691108
Power steering cylinder           5691109
Pitman arm (power steering)           3741383 3741383 386470716
Pitman arm (manual steering)           3820345 3820345 386470316
Steering box (manual)
Steering box (power)
Steering knuckle/spindle 3749438 3828580 3828580 3828580 3828580 3828580 3828580 3855004 16
Steering knuckle support (left) 3733449 3733449 3733449 3733449 3733449
Steering knuckle support (right) 3733450 3733450 3733450 3733450 3733450
Sway Bar (front) 3760435 3760435 3760435 3760435 3760435 3760435 3760435 3868640


Dash Area

Part 1958 1959 1960 1961 1962 1963 1964 1965
Ashtray (dash)
Ashtray light               986239
Cigarette lighter       Pic Pic Pic Pic Pic
Cigarette lighter bezel 3741326     3782618
Cigarette lighter delete       3782919 33
Clock (in dash) 3752916     Pic Pic 3843693   986274
Clock delete (in dash)   Pic Pic 3780402       Pic
Courtesy lights (under dash)           985574
Dash Fashia (Impala)           Pic
Dash script "Impala" 3748089
Gas/Fuel gauge 1518938
Glove box door     Pic
Headlamp knob       3782624       386010416
Headlamp knob bezel       538599
Headlamp switch       1995096
Heater switch (non AC)           3819637   385741616
Horn ring/button   Pic Pic 765988   Pic   Pic
Horn button-Biscayne
Horn button-Belair
Horn button-Impala               Pic
Horn button-Impala SS X X X
Ignition switch           Pic
Radio AM (manual) Pic             Pic
Radio AM (pushbutton) Pic         Pic   Pic
Radio AM/FM (pushbutton) X X X X X   Pic
Radio delete plate   Pic Pic 3780582 32   Pic   Pic
Radio knobs (outer) 1990894     Pic Pic Pic   Pic
Radio knobs (inner) 7270288 18             Pic
Radio knob escutcheon 7270287
Radio fader               729086116
Parking brake alarm     988198
Stop lamp switch 1998196     1998667
Speedometer   Pic Pic
Steering wheel       Pic   Pic Pic
Tachometer X X X         6412235
Temperature gauge 1513485 1513665 1513665
Turn signal cancel cam   3813945 3813945 3813945 3813945 3813945 3813945 3813945
Turn signal lever 3745804 Pic Pic
Turn signal lever knob 3711070
Tissue dispenser Pic Pic Pic     Pic   Pic 16
Vacuum guage               Pic
Wiper switch (single speed w/o washer)   1998729 1998729 1998729 1998729 1998729 1998729
Wiper switch (single speed with washer)   1993541 1993541 1993541 1993541 1993541 1993642
Wiper switch (2 speed with washer)           1993543 1993643


Decals

Part 1958 1959 1960 1961 1962 1963 1964 1965
Air Conditioning decal (in window) 3747991
Air cleaner 340hp 409 (L-33) X X X X X Pic Pic Pic
Air cleaner 400hp 409 (L-31) X X X X X 3837809 3837809 3837809
Tire pressure (exc. wagon/El Camino)
Tire pressure (station wagon)           3777060
Jack instructions (exc. wagon & convertible) 3751480 Pic Pic   Pic 3825808 Pic Pic
Jack instructions (convertible)           3825810
Jack instructions (station wagon/delivery) 3751481         3825809
Valve cover-327             3832180


Electrical

Part 1958 1959 1960 1961 1962 1963 1964 1965
Horn (high note)           900045811
Horn (low note)           900045712
License plate lamp 898643         897923 897923


Emblems-Scripts

Part 1958 1959 1960 1961 1962 1963 1964 1965
Fender-"Fuel Injection" 3746457 3759114 X X X X X X
Fender-crossed flags (Fuel Injection) 3767507 X X X X X X X
Fender-327 & 409 crossed flags X X X X 3792000 3792000   3840318
Fender-"Belair" X 3760314 3776911 X X X X X
Fender-"Biscayne"   3759112 3776908
Fender-"El Camino" X 3759111 3776910 X X X X X

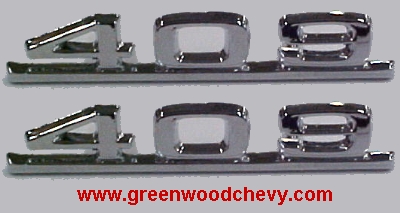

Fender-"409" X X X X 3815938 3815938 3840319 386583616
Fender-"396" X X X X X X X Pic
Fender-"283" X X X X 3791999 3791999 3840317 386583316
Fender-"327" X X X X X X X 386583416
Fender-"6"           3827151
Fender-"Caprice" X X X X X X X 387600017
Fender-"Impala" X X X X X X X 386217316
Fender-"Supersport" X X X X X X X 386773516
Fender-"Impala in circle" X X X X X X X 386220816
Fender top spear Pic 3756817   3783698 3813428 X X X
Grill-"Chevrolet" X X X X X X   3855483
Hood Letters     Pic Pic
Hood emblem         3816345 3819741
Quarter flag emblem 3780964

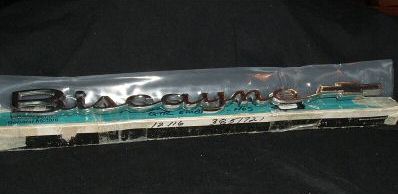

Quarter "Biscayne"             3851721
Quarter "Impala in circle"           3832299

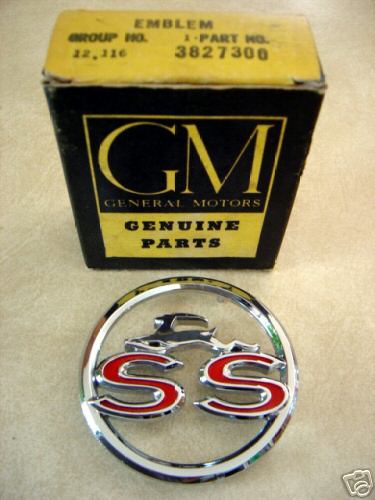

Quarter "Impala SS in circle" X X X X   3827300
Trunk emblem w/bezel           3820220 3853183 3870783
Rear panel "Level Air" emblem 3755711 X X X X X X X


Glass

Part 1958 1959 1960 1961 1962 1963 1964 1965
Windshield (clear) 47119306     48023928
Windshield (tinted) 47145157     48023939
Wing window regulators               Pic 16


Lenses

Part 1958 1959 1960 1961 1962 1963 1964 1965
Front parking lens   5950114   5951966   5954419
Rear back up lens 5948757 5950297 5950297   5953477 5954188 5955336

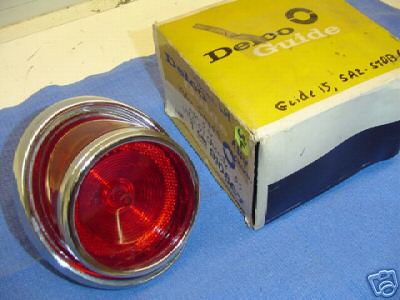

Rear brake lens/tail (exc. El Camino) 5948749 5949870 5951078 5951078 5953248     Pic
Rear brake/tail lens (El Camino) X Pic X X X X X X


Literature

Part 1958 1959 1960 1961 1962 1963 1964 1965
Owners manual Pic Pic Pic Pic Pic 3821487 Pic Pic
Owner protection plan           3821481 3841541 Pic
Owner Protect-O-Plate X X X X X X X Pic
Folding top instructions           4124156 4224959
Seat belt instruction tag           3817320 3855739
Accessories folder           3829171 3840637 Pic
Radio (AM) operating instructions           7286147
Radio (AM/FM) operating instructions X X X X X Pic


Moldings-Trim-Brightwork

Part 1958 1959 1960 1961 1962 1963 1964 1965
Cove panel-rear (LH-Impala)         Pic Pic
Cove panel-rear (RH-Impala)         Pic Pic
Cove panel-rear (LH-Impala SS)           Pic
Cove panel-rear (RH-Impala SS)           Pic
Cove panel molding (LH)           Pic
Cove panel molding (RH)           Pic
Door handle guards       Pic Pic Pic Pic
Headlamp bezels (LH) 3742596 Pic       3817613   Pic
Headlamp bezels (RH) 3742596 Pic       3817614   Pic
Hood molding           3821976
Fender bars (LH-upper)           3821013
Fender bars (RH-upper)           3821014
Fender bars (LH-lower)           3821015
Fender bars (RH-lower)           3821016

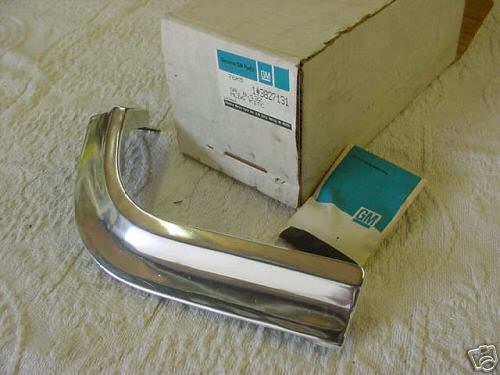

Fender eyebrow molding (LH)           3827131   Pic
Fender eyebrow molding (RH)               Pic
Fender side molding Pic
Gas filler door guard (except wagon)           Pic Pic 985489
Gas filler door guard (station wagon)           Pic   98624116
Grill 3747202 3767700 3768435 3777175 3788244 3817606 3830700 3850210
Grill nameplate-"Chevrolet" X X X X X X 3839351 3864294
Parking light bezels (front left) 3751047 3764505
Parking light bezels (front right) 3751048 3764506
Tail light trim/ornament           Pic 5955332
Trunk molding (upper)           Pic

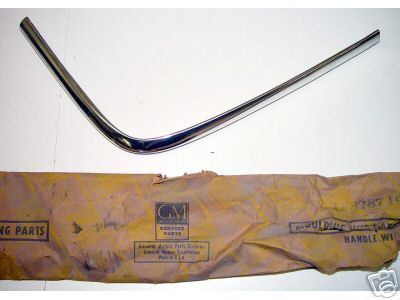

Quarter panel to trunk molding (LH)       3787195
Quarter panel "pitch fork" moldings Pic X X X X X X X
Quarter panel "S" molding (left) Pic X X X X X X X
Quarter panel "S" molding (right) Pic X X X X X X X


Sheetmetal

Part 1958 1959 1960 1961 1962 1963 1964 1965
Cowl Panel           381925710 381925710
Gas filler door           Pic
Grill mounting bracket (LH)           3821273
Grill mounting bracket (RH)           3821274
Hood 3737729 3752792 3764273 3772989 3786160 3817605 3855452 387659013
Hood hinge (left) 3741851     3782261
Hood hinge (right) 3741852     3782262
Hood hinge spring 3747007     3781357
Hood striker assembly (on hood)       3780130   3819815
Hood catch assembly (on support)       3780134   3819819 3839538
Fender (left) 3755801 3764709 3764271 3783147 3786161 3828591 3828941 3865815
Fender (right) 3755802 3764710 3764272 3783148 3786162 3828592 3828942 3865816
Inner Fender (left)           3819177
Inner Fender (right)           3819178
Door (left) 2 dr coupe 4733649 4770676 4787743 4815063 4815063 4415781 4415781 4495148
Door (right) 2 dr coupe 4733648 4770675 4787742 4815062 4815062 4415780 4415780 4495147
Door (left) 2 dr sedan 4733659 4770670 4787757 4813621 4813621 4415779 4415779 7587231
Door (right) 2 dr sedan 4733658 4770669 4787756 4813620 4813620 4415778 4415778
Radiator support 3755436     3777226   3849957
Radiator support tie bar           3819898
Roof (2 door sedan) 472743227 4803030 4803030 4794709 4823127 4823127 4823127 4426146
Roof (4 door sedan)   4803030 4803030 4794709 4823127 4823127 4823127 4426146
Roof (2 door hardtop)   4803023 4803023 4794822 483926328 4839263 4839263 4461673
Roof (4 door hardtop)   4803032 4803032 4794779 4794779 4878674 4878674 4533809
Roof (El Camino) X 4803070 4803070 X X X X X
Roof (Delivery) 4728896 4748902 4787583 X X X X X
Roof (station wagon) 4728896 4803069 4803069 4797407 4797407 4797407 4797407 4533811
Tailgate (El Camino) X 4756626 4810203 X X X X X
Tailgate (station wagon)   4756625 4810201 4845398 4878631 4874436925   443944726
Trunk lid (Belair/Biscayne) 4703929 475085323 477762924 4838386 4830066 4446254 4401099 4439520
Trunk lid (Impala) 470997421 475085323 477762924 4838388 4830067 4402727 4419897 446175322
Quarter Panel (left) 2 door Belair 4719287       4823145   4411357
Quarter Panel (right) 2 door Belair 4719288       4823144   4411356
Quarter Panel (left) 2 door Biscayne 4717581           4411357
Quarter Panel (right) 2 door Biscayne 4717580           4411356
Quarter Panel (left) 2 door Impala 4706799       4823173     4490424
Quarter Panel (right) 2 door Impala 4706798       4823172
Quarter Panel (left) 2 door Convertible 4706822 4779183 4774805 4794841 4823169 4405876 4437499 4427013
Quarter Panel (right) 2 door Convertible 4706821 4779184 4774804 4794840 4823168 4405675 4437498 4427012
Quarter Panel (left) Sedan Delivery 4760126 30 4781495 4778094 X X X X X
Quarter Panel (right) Sedan Delivery 4760127 30 4781496 4778095 X X X X X
Quarter Panel (left) El Camino X 4781495 4778094 X X X X X
Quarter Panel (right) El Camino X 4781496 4778095 X X X X X
Quarter Panel (left) 2 door wagon 4760126 29 4781495 4805970 X X X X X
Quarter Panel (right) 2 door wagon 4760127 29 4781496 4805971 X X X X X
Quarter Panel (left) 4 door wagon 4706452 31 4781497 4805978 4832346 4853167 4899340 4411360 4490636
Quarter Panel (right) 4 door wagon 4706453 31 4781498 4805979 4832347 4853168 4899341 4411361 4490367


Underhood Area

Part 1958 1959 1960 1961 1962 1963 1964 1965
Air cleaner assembly 6 cylinder           5649855
Air cleaner assembly L-30 327 X X X X     6419181
Air cleaner assembly R.P.O. 573 348 (3 X 2) 1553863       X X X X
Air cleaner assembly R.P.O. 410 348 (1 X 4) 1553498       X X X X
Air cleaner assembly L-33 340hp 409 X X X X X 3418629
Air cleaner assembly L-31 400hp 409 X X X X X 5649859
Air cleaner assembly L-80 425hp 409 X X X X X 6418224
Battery Tray         Pic Pic
Carburetor L-33 340hp 409 X X X X X 7020023
Carburetor L-31 400hp 409 X X X X X 3827324
Carburetor (front) L-80 425hp 409 X X X X X 3815403
Carburetor (rear) L-80 425hp 409 X X X X X 3815404
Glass fuel bowl L-33 340hp 409 X X X X X 5650815
Glass fuel bowl L-31 400hp 409 X X X X X 5650823
Glass fuel bowl L-80 425hp 409 X X X X X 5650815
Glass Triangular washer bottle           3789848
Glass Triangular washer bottle bracket           3815273
Plastic washer jug           3840083
Plastic washer jug bracket           3821830
Plastic washer jug cap           3798372
Plastic washer jug hose/filter assembly           3772059
Fan Blade-4 blade 3839282 3839282 3839282 3839282 3839282 3839282 3839282 3839282
Fan Blade-5 blade w/o clutch 3770262 3770262 3770262 3770262 3770262 3770262 3770262 X
Fan Blade-5 blade with clutch 3789562 3789562 3789562 3789562 3789562 3789562 3789562 3789562
Fan Shroud (6 cylinder/283/327)
Fan Shroud (348/409)               Pic
Oil Cannister 5574279 5574279 5574279 5574279 5574279 5574279 5574279 5574279
Oil Filter PF-141 PF-141 PF-141 PF-141 PF-141 PF-141 PF-141 PF-141


Wheels-Wheel covers-Hub caps

Part 1958 1959 1960 1961 1962 1963 1964 1965
Hub cap (dog dish)       Pic Pic 3821120 Pic
Regular wheel cover Pic 3760050 3769530 3783336 3819934 3821121 3840980 3860204
Mag style X X X X X X X 3872861
Supersport wheel cover X X X 3803938 3816540 3827419 3849435 386788115
Wire wheel cover X X X X X 3826516 3834904 Pic
Caprice wheel cover X X X X X X X Pic


X-Boxes marked with an X show a part that was not used in that year.
1 This number is for the upper center front bumper. The lower center bumper is 3745676.
2 This number is for the upper center rear bumper. The lower center bumper is 3741661.
3 All except wagon. Station wagon used 3765010.
4 All except wagon. Station wagon used 3772948.
5 All except wagon. Station wagon used 3853778.
6 All except Impala. Impala used 4712559.
7 All except Impala. Impala used 4714516.
8 All except Impala and convertible. Impala and convertible used 4803661.
9 All except Impala and convertible. Impala and convertible used 4803621.
10 All LH drive models. All RH drive models used 3821136.
11 Optional horn also available 9000478.
12 Optional horn also available 9000477.
13 1966 also used this same hood.
14 1966 also used this same frame.
15 Also used on the Caprice with a different center emblem.
16 Also fits 1966.
17 Also fits 1966 and 1967.
18 This number is for the left knob. Right side used only a spacer #7270289
19 This number is for the 9 passenger wagon. 6 passenger first design was #3764265. Second design was #376774
20 This number is for the first design. The second design was #376774 (second design has hose going to filler neck)
21 This number is for coupe. Convertible used #4709975
22 This number is for Impala 2 door hardtop. All other Impalas used #4439521
23 This number is for 2 door hardtop. Sedans and convertibles used #4750850
24 This number is for 2 door hardtop. Sedans and convertibles used #4777627
25 This number is for Impala wagons. Belair used #4873197 and Biscayne used #4873196
26 This number is for Impala wagons. Belair and Biscayne used #4439445
27 Except Impala. Impala used #4728833
28 Except Belair. Belair used 1961 roof #4794822
29 This number is for the lower. Uppers are #4717715-left and #4717716-right.
30 This number is for the lower. Uppers are #4706850-left and #4706851-right.
31 This number is for the lower, Except Nomad. Uppers for 6 passenger are #4728611-left and #4728612-right. Uppers for 9 passenger are #4717711-left and #4717712-right.
32 This number is for 11-12-13-14-15-1600 series. 17-1800 series used #3785639
33 This number is for 11-12-13-1400 series.
